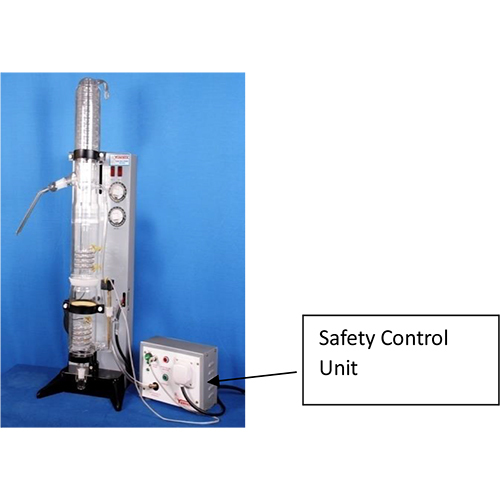

All Quartz Double Distiller Vertical Model

Send Inquiry

Request To Call Back

All Quartz Double Distiller Vertical Model

Name: All Quartz Double Distiller Vertical Model
Brand: INDIAN SCIENTIFIC LAB PRODUCTS
Price: 170000.0 INR
Availability: InStock

Price 170000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

All Quartz Double Distiller Vertical Model Specification

Temperature Resistance
150

Glass Type
Quartz

Heating Capacity
2 Kilowatt (kW)

Control Type
Temperature

Power Supply
220

Shape
vertical

Features
Pressure Temperature Switch (PTS) is provided for safety of the boiler. The unit switches off when water level in the boiler falls below the heater.

Display Type
Indicating Lamp

Usage
chemistry

Type
Distillation Kits

Size
300

Dimension (L*W*H)
300 Millimeter (mm)

Height
600 Millimeter (mm)

Product Type
Double Distiller

Weight
5 Kilograms (kg)

Equipment Type
Distiller

Color
Grey

Equipment Materials
Quartz

Length
300 Millimeter (mm)

Width
300 Millimeter (mm)

Power
2 Volt (v)

Voltage
220 Volt (v)

Material
Quartz

Application
Chemistry Lab

Warranty
1 Year

Capacity (Ltr)
2 Liter (L)

All Quartz Double Distiller Vertical Model Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4 Week

About All Quartz Double Distiller Vertical Model

FEATURES

Demountable condenser above the boiler makes it easy for removal and cleaning

The ball & Socket are ground precisely for perfect matching & interchangeability.

Boilers & condenser have larger boiling space resulting in better quality distillate.

The distilled water is cool, around 40 - 60C ensured by larger condensing area.

The stand is powder coated for rust free operation and lustrous appearance.

Precision Distillation with Quartz Reliability

Constructed entirely from high-grade quartz, this double distiller guarantees chemical resistance and improved purity for laboratory applications. The 2-liter capacity and 2 kW heating element deliver consistent, rapid distillation cycles. Combined with its vertical design, it occupies minimal bench space while providing maximum efficiency in processing distilled water. This unit is built for demanding chemists who require reliable performance and safety in their daily operations.

Integrated Safety Features and User-Friendly Controls

The model includes a Pressure Temperature Switch (PTS) that automatically powers off the unit if the boiler's water drops below a safe level, protecting both the distiller and user. Its indicating lamp provides clear, real-time operational status. With a temperature-resistant quartz build and ergonomic control interface, this double distiller prioritizes both user safety and convenience during continuous laboratory use.

FAQ's of All Quartz Double Distiller Vertical Model:

Q: How does the All Quartz Double Distiller ensure high-purity distilled water?

A: The distiller uses a dual-stage distillation process where water is evaporated and condensed twice, effectively removing impurities. Its full quartz construction prevents contamination, ensuring only the highest purity output suitable for sensitive chemistry lab applications.

Q: What safety measures are included in this double distiller model?

A: A Pressure Temperature Switch (PTS) is built into the unit, which automatically shuts off the boiler if the water level falls below a safe minimum, reducing risk of overheating or damage. The indicating lamp further helps monitor operational status for safe use.

Q: When should I use a double distiller in my laboratory process?

A: Double distillers are ideal when extremely pure distilled water is required, such as in analytical chemistry, preparation of reagents, or experiments where trace contaminants may affect results. This model is well-suited for these procedures due to its efficient dual distillation and chemical-resistance properties.

Q: Where can the All Quartz Double Distiller Vertical Model be installed, and what are its space requirements?

A: The compact vertical design (300x300x600 mm) makes it suitable for standard chemistry lab benches. It only requires access to a 220V power supply and should be positioned in a well-ventilated workspace, away from moisture-sensitive equipment.

Q: What are the main benefits of using quartz material for this distillation kit?

A: Quartz is chemically inert and highly temperature-resistant, preventing leaching of impurities and ensuring long-term durability. This results in consistently pure distillate and reduces maintenance compared to metal or lesser-grade glass distillers.

Q: How do I operate and monitor the distiller's performance during use?

A: Simply fill the unit with water, select the appropriate temperature using the controls, and start the process. The indicating lamp shows operational status, while the integrated safety systems make operation straightforward and secure. Regularly check the water levels and output for optimal results.

Q: Is this distiller covered by a warranty, and what support is offered for repairs?

A: Yes, the All Quartz Double Distiller Vertical Model comes with a one-year warranty covering manufacturing defects. As the manufacturer, supplier, and service provider, support and servicing are readily available for customers in India.
